Polyamide Flexible Conduit Pipes & Fittings in Bhavnagar
Bhavnagar's rolling mills, Alang's ship-recycling yard and Sihor's foundries form a heavy engineering cluster. Wiring here faces impact, dust and heat.
Conduit systems for machine builders and machine tools
Most of our Bhavnagar enquiries come from heavy engineering units. These are the products they usually start with.
PA-6 Heavy Weight FR conduit
750 N compression class for wiring exposed to coolant, chips and knocks.
View sizes and specs45° bend connectors
Route conduit off motors and junction boxes at a gentle angle.
View sizes and specsIndustrial areas we supply in and around Bhavnagar
- Chitra GIDC
- Vartej GIDC
- Alang
- Sihor
End fittings and accessories for every conduit
A conduit run is only as good as its ends. Order the connectors, locknuts, seals and clamps with the conduit so every part matches.
End fittings: straight connectors
Polyamide body, PG 09 to PG 48 or M16 to M50 thread. The standard entry into boxes and panels.
90° elbow and 45° bend connectors
Turn the run at the entry point without bending the conduit tighter than its radius.
Hexagonal locknuts
Nickel-plated brass, PG 11 to PG 48 and M12 to M50. Lock the connector to the wall.
Sealing washers
Reinforced NBR, -30 to +105 °C. Seal the connector against the enclosure.
Sealing rings
NBR rings SR10 to SR70 between conduit and connector.
Tube clamps
Galvanised steel with elastomer profile, GSTC-12 to GSTC-48. Fix conduit to frames.
Flange connectors
Straight and elbow flanges for NW-70 and NW-95 heavy runs.
From our Faridabad unit

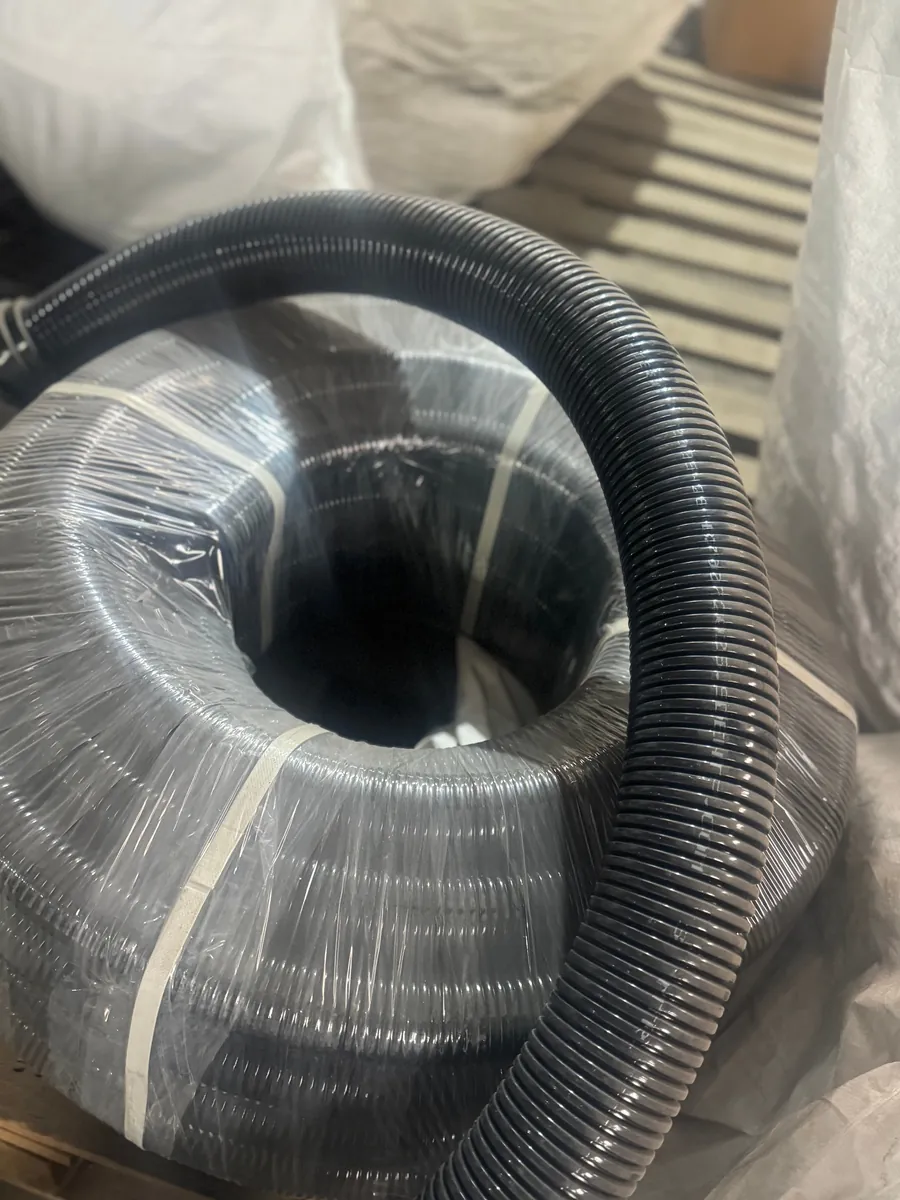

Conduit is coiled, wrapped and strapped at our unit before it leaves for Bhavnagar. Fittings and accessories are packed with the same order.
Match conduit and accessories by size
Pick the conduit size, then read across for the connector, locknut, washer, ring and clamp that fit it.
| Size | FR conduit code | OD (mm) | Straight connector, PG | Straight connector, metric | Locknut | Sealing washer | Sealing ring | Tube clamp |
|---|---|---|---|---|---|---|---|---|
| NW-10 | PABC-10BV0 | 13 | PSC-PG09 | PSC-M16C10 | BLNM-M16 | OSW-M16 | SR10 | — |
| NW-12 | PABC-12BV0 | 15.8 | PSC-PG11 | PSC-M16C12 | BLNP-PG11 / BLNM-M16 | OSW-PG11 / OSW-M16 | SR12 | GSTC-12 |
| NW-17 | PABC-17BV0 | 21.2 | PSC-PG16 | PSC-M20C17 | BLNP-PG16 / BLNM-M20 | OSW-PG16 / OSW-M20 | SR17 | GSTC-17 |
| NW-23 | PABC-23BV0 | 28.5 | PSC-PG21 | PSC-M25C23 | BLNP-PG21 / BLNM-M25 | OSW-PG21 / OSW-M25 | SR23 | GSTC-23 |
| NW-29 | PABC-29BV0 | 31.4 | PSC-PG29 | PSC-M32C29 | BLNP-PG29 / BLNM-M32 | OSW-PG29 / OSW-M32 | SR29 | GSTC-29 |
| NW-36 | PABC-36BV0 | 42.4 | PSC-PG36 | PSC-M40C36 | BLNP-PG36 / BLNM-M40 | OSW-PG36 / OSW-M40 | SR36 | GSTC-36 |
| NW-48 | PABC-48BV0 | 51.4 | PSC-PG48 | PSC-M50C48 | BLNP-PG48 / BLNM-M50 | OSW-PG48 / OSW-M50 | SR48 | GSTC-48 |
| NW-70 | PABC-70BV0 | 80 | PFC-PG70 (flange) | — | — | — | SR70 | — |
Codes from our published catalogue. The same NW sizes apply to light weight, slit and PE conduit. 45° and 90° connectors follow the same thread sizes (PBC- and PEC- codes). Confirm thread and assembly with your quote before ordering.
How ordering works
Orders for Bhavnagar are dispatched from Faridabad by road transport or courier. Freight and transit time are quoted with each order, based on volume and your PIN code.
- Send sizes, quantities and fittings, with your delivery city and PIN code.
- We confirm the matched system, price, lead time and freight.
- We dispatch from our Faridabad unit with the documents you need.
Which conduit suits rolling mills?
PA-6 Heavy Weight FR with tube clamps and sealed entries. Tell us the exposure and we confirm the grade.
Do you deliver to Alang and Sihor?
Yes. Give your PIN code for a freight quote.
What sizes of polyamide flexible conduit can you supply in Bhavnagar?
PA-6 flexible conduit from NW-10 (13 mm OD) to NW-70 (80 mm OD), in heavy weight FR, light weight, slit and PE versions, with matching fittings.
Do you supply the fittings and accessories as well?
Yes. Straight, 45°, 90° and flange connectors, hexagonal locknuts, sealing washers, sealing rings and tube clamps, matched to each conduit size.
