Home/ Products/ Flexible Conduit
Category 01 — Cable Protection

Flexible Conduit Pipes, Fittings & Accessories

Four PA-6 and PE flexible conduit pipe families, sized from NW-10 to NW-70, matched to straight, 45°, 90° and flange connectors, locknuts, tube clamps and sealing components — the complete conduit system, not isolated parts.

Interactive · Size finder

What diameter are you routing?

Enter the outer diameter of the cable or bundle you need to protect — we'll recommend the smallest NW size with enough clearance, across all four conduit grades.

Conduit families

Choose by grade and environment

All four families share the same NW sizing ladder — pick the material and fire-rating your application needs, then confirm the exact size below.

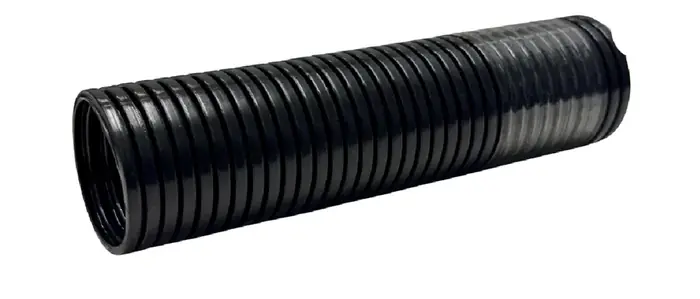

PA-6 heavy weight flexible conduit pipe, FR grade, corrugated black conduit
FR Grade · UL94 V-0

PA-6 Heavy Weight Flexible Conduit Pipes - FR Grade

Fire-retardant flexible corrugated conduit for cable protection.

Polyamide 6 -40 to +105 °C IP68
View technical specifications
PA-6 Heavy Weight Flexible Conduit — FR Grade
ParameterValueClass / method / notes
MaterialPolyamide 6
ColourBlack, Grey
Temperature Range-40 to +105 °C
Short-Term TemperatureUp to +150 °C
Compression Strength750 NClass 3 · IEC EN 61386
Tensile Strength500 NClass 3 · IEC EN 61386
Impact Strength (+23°C)>20 JClass 5 · IEC EN 61386
Protection ClassIP68IEC EN 61386
Fire PerformanceV-0 / V2 / HBUL94
Free from HalogensYesDIN 53474
View sizes & product codes (8 SKUs)
Product codeSizeID (mm)OD (mm)Roll lengthBend radius
PABC-10BV0NW-109.513100m20mm
PABC-12BV0NW-1211.215.840m35mm
PABC-17BV0NW-1715.821.250m45mm
PABC-23BV0NW-2322.528.550m55mm
PABC-29BV0NW-2927.531.450m65mm
PABC-36BV0NW-3635.542.425m75mm
PABC-48BV0NW-484751.425m90mm
PABC-70BV0NW-7067.58010m105mm
Full product page Request Quote WhatsApp Enquiry

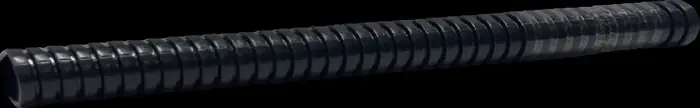

PA-6 light weight flexible conduit pipe, non-FR, black corrugated conduit
Non-FR

PA-6 Light Weight Flexible Conduit Pipes - Non-FR

Flexible cable protection product for industrial, automotive, railway and wireharness applications.

Polyamide 6 Per grade datasheet Non-FR
View technical specifications
PA-6 Light Weight Flexible Conduit — Non-FR
ParameterValue
MaterialPolyamide 6
GradeNon-FR
ApplicationIndustrial, automotive, railway, wire-harness
View sizes & product codes (8 SKUs)
Product codeSizeID (mm)OD (mm)Roll / PPQBend radius
LW-PABC-10PG099.513100m20mm
LW-PABC-12PG1111.215.8100m35mm
LW-PABC-17PG1615.821.250m45mm
LW-PABC-23PG2222.528.550m55mm
LW-PABC-29PG2827.534.450m65mm
LW-PABC-36PG3535.542.430m75mm
LW-PABC-48PG474754.430m90mm
LW-PABC-70PG6967.58010m105mm
Full product page Request Quote WhatsApp Enquiry
PA-6 slit flexible conduit pipe for retrofit cable protection
Slit / Retrofit

PA-6 Slit Flexible Conduit Pipes - Non-FR

Slit flexible conduit for retrofit cable protection

Polyamide 6 Per grade datasheet Non-FR
View technical specifications
PA-6 Slit Flexible Conduit — Non-FR
ParameterValue
MaterialPolyamide 6
GradeNon-FR, slit / split profile
ApplicationRetrofit cable protection without disconnecting the harness
View sizes & product codes (8 SKUs)
Product codeSizeIDODRoll
PABC-10B-PG-9 SLITPG099.5 mm13 mm100 m
PABC-12B-PG-11 SLITPG1111.2 mm15.8 mm40 m
PABC-17B-PG-16 SLITPG1615.8 mm21.2 mm50 m
PABC-23B-PG-21 SLITPG2122.5 mm23.5 mm50 m
PABC-29B-PG-29 SLITPG2927.5 mm31.4 mm50 m
PABC-36B-PG-36 SLITPG3635.5 mm42.4 mm25 m
PABC-48B-PG-48 SLITPG4847 mm51.4 mm25 m
PABC-70B-PG-70 SLITPG7067.5 mm80 mm10 m
Full product page Request Quote WhatsApp Enquiry
PE flexible conduit pipe for machine tools and industrial machinery
Chemical-resistant

PE Flexible Conduit Pipe

Flexible polyethylene conduit for machine tools and industrial machinery applications.

Polyethylene (PE) -15 to +80 °C IP68
View technical specifications
PE Flexible Conduit Pipe
ParameterValue
MaterialPolyethylene (PE)
Temperature range-15 to +80 °C
Short-term temperatureUp to +105 °C
Flammability classUL 94 V-0 / V2 / HB
Chemical resistanceAcid, sea water, ammonia, etc.
Protection classIP68
View sizes & product codes (8 SKUs)
Product codeNWID (mm)OD (mm)Bend radius (mm)PPQ (m)
PE-10109.513.020100
PE-121211.215.835100
PE-171715.821.24550
PE-232322.528.55550
PE-292927.534.46550
PE-363635.542.47530
PE-484847.054.49030
PE-707067.580.010510
Full product page Request Quote WhatsApp Enquiry
Connection systems

Polyamide Conduit End Fittings

High-impact end fittings for straight, 45° bend and 90° elbow conduit connections.

Full product page for all fitting types
Polyamide straight connectors for flexible conduit

Straight Connectors

Polyamide straight connectors manufactured in PG and metric thread sizes.

＋
PG THREAD VERSIONS
Part nameThreadFits conduitOD (mm)ID (mm)TL (mm)L (mm)WS (mm)
PSC-PG09PG 091026.0 ±0.510.0 ±0.512.0 ±0.143.0 ±2.018.0 ±0.5
PSC-PG11PG 111229.0 ±0.512.0 ±0.512.0 ±0.143.5 ±2.019.1 ±0.5
PSC-PG16PG 161734.8 ±0.516.0 ±0.513.0 ±0.148.0 ±2.022.5 ±0.5
PSC-PG21PG 212343.0 ±0.521.8 ±0.514.0 ±0.152.5 ±2.034.3 ±0.5
PSC-PG29PG 292955.0 ±0.527.5 ±0.514.0 ±0.155.0 ±2.040.0 ±0.5
PSC-PG36PG 363667.2 ±0.537.0 ±0.517.0 ±0.163.0 ±2.045.0 ±0.5
PSC-PG48PG 484872.6 ±0.548.0 ±0.517.0 ±0.163.0 ±2.060.3 ±0.5
METRIC THREAD VERSIONS
Part nameThreadFits conduitOD (mm)ID (mm)TL (mm)L (mm)WS (mm)
PSC-M16C10M16 x 1.51026.0 ±0.510.0 ±0.510.0 ±0.140.0 ±0.518.0 ±2.0
PSC-M16C12M16 x 1.51229.0 ±0.513.0 ±0.512.0 ±0.143.5 ±0.521.2 ±2.0
PSC-M20C17M20 x 1.51734.8 ±0.514.0 ±0.513.0 ±0.147.0 ±0.526.4 ±2.0
PSC-M25C23M25 x 1.52343.0 ±0.518.0 ±0.513.0 ±0.153.0 ±0.534.3 ±2.0
PSC-M32C23M32 x 1.52343.0 ±0.521.8 ±0.513.0 ±0.152.5 ±0.534.3 ±2.0
PSC-M32C29M32 x 1.52955.0 ±0.524.0 ±0.513.0 ±0.154.5 ±0.540.0 ±2.0
PSC-M40C29M40 x 1.52955.0 ±0.529.0 ±0.513.0 ±0.154.0 ±0.540.0 ±2.0
PSC-M40C36M40 x 1.53667.2 ±0.532.5 ±0.513.0 ±0.157.6 ±0.549.0 ±2.0
PSC-M50C36M50 x 1.53667.2 ±0.535.6 ±0.514.0 ±0.158.5 ±0.549.0 ±2.0
PSC-M50C48M50 x 1.54872.6 ±0.540.3 ±0.514.0 ±0.158.5 ±0.560.3 ±2.0
Request Quote WhatsApp Enquiry
Polyamide 45 degree bend connector for flexible conduit

Bend Connectors (45°)

Polyamide 45° bend connectors in PG and metric thread sizes.

＋
PG THREAD VERSIONS
Part nameThreadFits conduitOD (mm)ID (mm)TL (mm)L (mm)
PBC-PG09PG 091026.0 ±0.510.0 ±0.512.0 ±0.157.0 ±2.0
PBC-PG11PG 111229.0 ±0.513.0 ±0.512.0 ±0.160.0 ±2.0
PBC-PG16PG 161735.1 ±0.516.0 ±0.513.0 ±0.172.0 ±2.0
PBC-PG21PG 212341.0 ±0.522.0 ±0.514.0 ±0.186.0 ±2.0
PBC-PG29PG 292952.7 ±0.528.0 ±0.514.0 ±0.198.0 ±2.0
PBC-PG36PG 363664.0 ±0.537.0 ±0.517.0 ±0.1112.0 ±2.0
PBC-PG48PG 484874.0 ±0.548.0 ±0.517.0 ±0.1125.0 ±2.0
METRIC THREAD VERSIONS
Part nameThreadFits conduitOD (mm)ID (mm)TL (mm)L (mm)
PBC-M16C10M16 x 1.51026.0 ±0.510.0 ±0.510.0 ±0.157.0 ±2.0
PBC-M16C12M16 x 1.51229.0 ±0.513.0 ±0.512.0 ±0.160.0 ±2.0
PBC-M20C17M20 x 1.51734.8 ±0.514.0 ±0.513.0 ±0.172.0 ±2.0
PBC-M25C23M25 x 1.52343.0 ±0.518.0 ±0.513.0 ±0.186.0 ±2.0
PBC-M32C23M32 x 1.52343.0 ±0.521.8 ±0.513.0 ±0.186.0 ±2.0
PBC-M32C29M32 x 1.52955.0 ±0.524.0 ±0.513.0 ±0.198.0 ±2.0
PBC-M40C29M40 x 1.52955.0 ±0.529.0 ±0.513.0 ±0.198.0 ±2.0
PBC-M40C36M40 x 1.53667.2 ±0.532.5 ±0.513.0 ±0.1112.0 ±2.0
PBC-M50C36M50 x 1.53667.2 ±0.535.6 ±0.514.0 ±0.1112.0 ±2.0
PBC-M50C48M50 x 1.54872.6 ±0.540.3 ±0.514.0 ±0.1125.0 ±2.0
Request Quote WhatsApp Enquiry

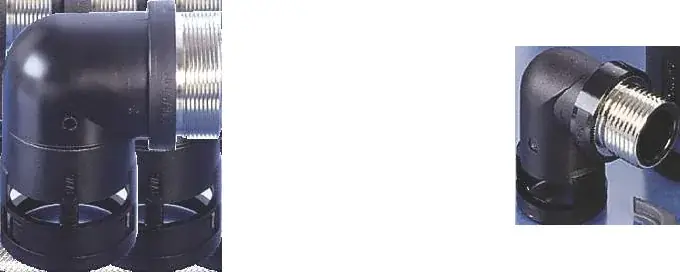

Polyamide 90 degree elbow connector for flexible conduit

Elbow Connectors (90°)

Polyamide 90° elbow connectors in PG and metric thread sizes.

＋
PG THREAD VERSIONS
Part nameThreadFits conduitOD (mm)ID (mm)TL (mm)L (mm)
PEC-PG09PG 091026.0 ±0.510.0 ±0.512.0 ±0.145.0 ±2.0
PEC-PG11PG 111229.0 ±0.511.0 ±0.512.0 ±0.147.0 ±2.0
PEC-PG13.5PG 13.51735.1 ±0.513.8 ±0.513.0 ±0.155.0 ±2.0
PEC-PG16PG 161735.1 ±0.516.8 ±0.513.0 ±0.155.5 ±2.0
PEC-PG21PG 212340.0 ±0.522.0 ±0.514.0 ±0.169.0 ±2.0
PEC-PG29PG 292952.7 ±0.527.6 ±0.514.0 ±0.173.0 ±2.0
PEC-PG36PG 363663.0 ±0.537.0 ±0.517.0 ±0.188.0 ±2.0
PEC-PG48PG 484873.0 ±0.548.0 ±0.517.0 ±0.1104.0 ±2.0
METRIC THREAD VERSIONS
Part nameThreadFits conduitOD (mm)ID (mm)TL (mm)L (mm)
PEC-M16C10M16 x 1.51026.0 ±0.510.0 ±0.510.0 ±0.145.0 ±2.0
PEC-M16C12M16 x 1.51229.0 ±0.513.0 ±0.512.0 ±0.147.0 ±2.0
PEC-M20C17M20 x 1.51734.8 ±0.514.0 ±0.513.0 ±0.155.5 ±2.0
PEC-M25C23M25 x 1.52343.0 ±0.518.0 ±0.513.0 ±0.169.0 ±2.0
PEC-M32C23M32 x 1.52343.0 ±0.521.8 ±0.513.0 ±0.169.0 ±2.0
PEC-M32C29M32 x 1.52955.0 ±0.524.0 ±0.513.0 ±0.173.0 ±2.0
PEC-M40C29M40 x 1.52955.0 ±0.529.0 ±0.513.0 ±0.173.0 ±2.0
PEC-M40C36M40 x 1.53667.2 ±0.532.5 ±0.513.0 ±0.188.0 ±2.0
PEC-M50C36M50 x 1.53667.2 ±0.535.6 ±0.514.0 ±0.188.0 ±2.0
PEC-M50C48M50 x 1.54872.6 ±0.540.3 ±0.514.0 ±0.1104.0 ±2.0
Request Quote WhatsApp Enquiry

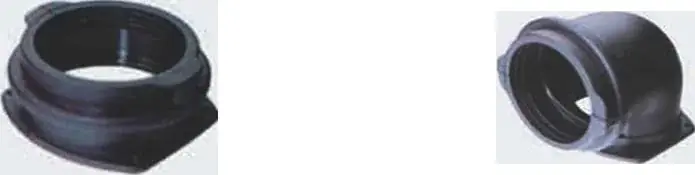

Polyamide flange straight and flange elbow connector

Flange Connectors

Flange straight and flange elbow connectors manufactured from polyamide 6.

＋
FLANGE STRAIGHT CONNECTOR — PFC
Part nameFits conduitOD (mm)ID (mm)L (mm)
PFC-PG707094.0 ±0.581.0 ±0.560.0 ±2.0
PFC-PG959595.0 ±0.5107.0 ±0.582.0 ±2.0
FLANGE ELBOW CONNECTOR — PEFC
Part nameFits conduitOD (mm)ID (mm)L (mm)
PEFC-PG707094.0 ±0.581.0 ±0.560.0 ±2.0
PEFC-PG959595.0 ±0.5107.0 ±0.582.0 ±2.0
Request Quote WhatsApp Enquiry
Accessories

Locknuts, Clamps & Sealing Components

The hardware that completes an IP68 conduit system: mounting, retention and environmental sealing.

Nickel-plated brass hexagonal locknut for conduit fittings

Hexagonal Locknuts

Nickel-plated brass hexagonal locknuts for high-strength and reliable threaded connections.

＋
PG THREAD VERSIONS
Part nameThread sizeWrench size (mm)Thickness (mm)
BLNP-PG11PG 1121.0 ±0.53.0 ±0.5
BLNP-PG13.5PG 13.523.0 ±0.53.0 ±0.5
BLNP-PG16PG 1626.0 ±0.53.0 ±0.5
BLNP-PG21PG 2132.0 ±0.53.5 ±0.5
BLNP-PG29PG 2941.0 ±0.54.0 ±0.5
BLNP-PG36PG 3651.0 ±0.55.0 ±0.5
BLNP-PG48PG 4864.0 ±0.55.0 ±0.5
METRIC THREAD VERSIONS
Part nameThread sizeWrench size (mm)Thickness (mm)
BLNM-M12M12 x 1.515.0 ±0.52.8 ±0.5
BLNM-M16M16 x 1.519.0 ±0.52.8 ±0.5
BLNM-M20M20 x 1.524.0 ±0.53.0 ±0.5
BLNM-M25M25 x 1.530.0 ±0.53.5 ±0.5
BLNM-M32M32 x 1.538.0 ±0.54.0 ±0.5
BLNM-M40M40 x 1.546.0 ±0.54.5 ±0.5
BLNM-M50M50 x 1.555.0 ±0.55.0 ±0.5
Full product page Request Quote WhatsApp Enquiry
Galvanized steel tube clamp with elastomer protection

Tube Clamps

Galvanized steel clamps with elastomer protection for mounting corrugated conduits.

＋
Part nameFits conduit dia. (mm)Width (mm)Thickness (mm)
GSTC-1216.0 ±0.515.0 ±0.51.0 ±0.1
GSTC-1722.0 ±0.515.0 ±0.51.0 ±0.1
GSTC-2329.0 ±0.515.0 ±0.51.0 ±0.1
GSTC-2935.0 ±0.520.0 ±0.51.0 ±0.1
GSTC-3644.0 ±0.520.0 ±0.51.0 ±0.1
GSTC-4855.0 ±0.520.0 ±0.51.0 ±0.1
Full product page Request Quote WhatsApp Enquiry
Reinforced NBR sealing washer for conduit end fittings

Sealing Washers

O-shape washers providing environmental protection to end-fitting connectors.

＋
PG THREAD VERSIONS
Part nameThreadOD (mm)ID (mm)Thickness (mm)
OSW-PG11PG 1126.0 ±0.518.6 ±0.51.5 ±0.1
OSW-PG13PG 1329.0 ±0.520.4 ±0.51.5 ±0.1
OSW-PG16PG 1633.0 ±0.522.5 ±0.51.5 ±0.1
OSW-PG21PG 2139.0 ±0.528.3 ±0.51.5 ±0.1
OSW-PG29PG 2949.0 ±0.537.0 ±0.51.5 ±0.1
OSW-PG36PG 3659.0 ±0.547.0 ±0.51.5 ±0.1
OSW-PG48PG 4871.0 ±0.559.3 ±0.51.5 ±0.1
METRIC THREAD VERSIONS
Part nameThreadOD (mm)ID (mm)Thickness (mm)
OSW-M12M12 x 1.518.0 ±0.512.0 ±0.51.5 ±0.1
OSW-M16M16 x 1.522.0 ±0.516.0 ±0.51.5 ±0.1
OSW-M20M20 x 1.527.0 ±0.520.0 ±0.51.5 ±0.1
OSW-M25M25 x 1.535.0 ±0.525.0 ±0.51.5 ±0.1
OSW-M32M32 x 1.543.0 ±0.532.0 ±0.51.5 ±0.1
OSW-M40M40 x 1.555.0 ±0.540.0 ±0.51.5 ±0.1
OSW-M50M50 x 1.569.0 ±0.550.0 ±0.51.5 ±0.1
Full product page Request Quote WhatsApp Enquiry
NBR elastomer sealing ring installed between conduit and connector

Sealing Rings

NBR elastomer rings installed between conduits and connectors to achieve IP68 environmental protection.

＋
Part nameFits conduit sizeID (mm)Thickness (mm)
SR101010.0 ±0.51.3 ±0.1
SR121212.0 ±0.51.5 ±0.1
SR171716.0 ±0.51.8 ±0.1
SR232322.0 ±0.52.0 ±0.1
SR292929.0 ±0.52.0 ±0.1
SR363634.0 ±0.52.3 ±0.1
SR484846.0 ±0.52.3 ±0.1
SR707070.0 ±0.54.0 ±0.1
Full product page Request Quote WhatsApp Enquiry

Compliance and performance references (IEC/EN 61386, UL 94, RoHS and related standards) apply to specific material grades and part numbers. Confirm the applicable certificate or test report before approval or commercial issue. See Quality & Compliance.

Need help matching a size to your existing installation?

Send the diameter you're replacing, or the cable bundle you're protecting, and we'll confirm the right NW size and fitting thread.

Request a Quote
